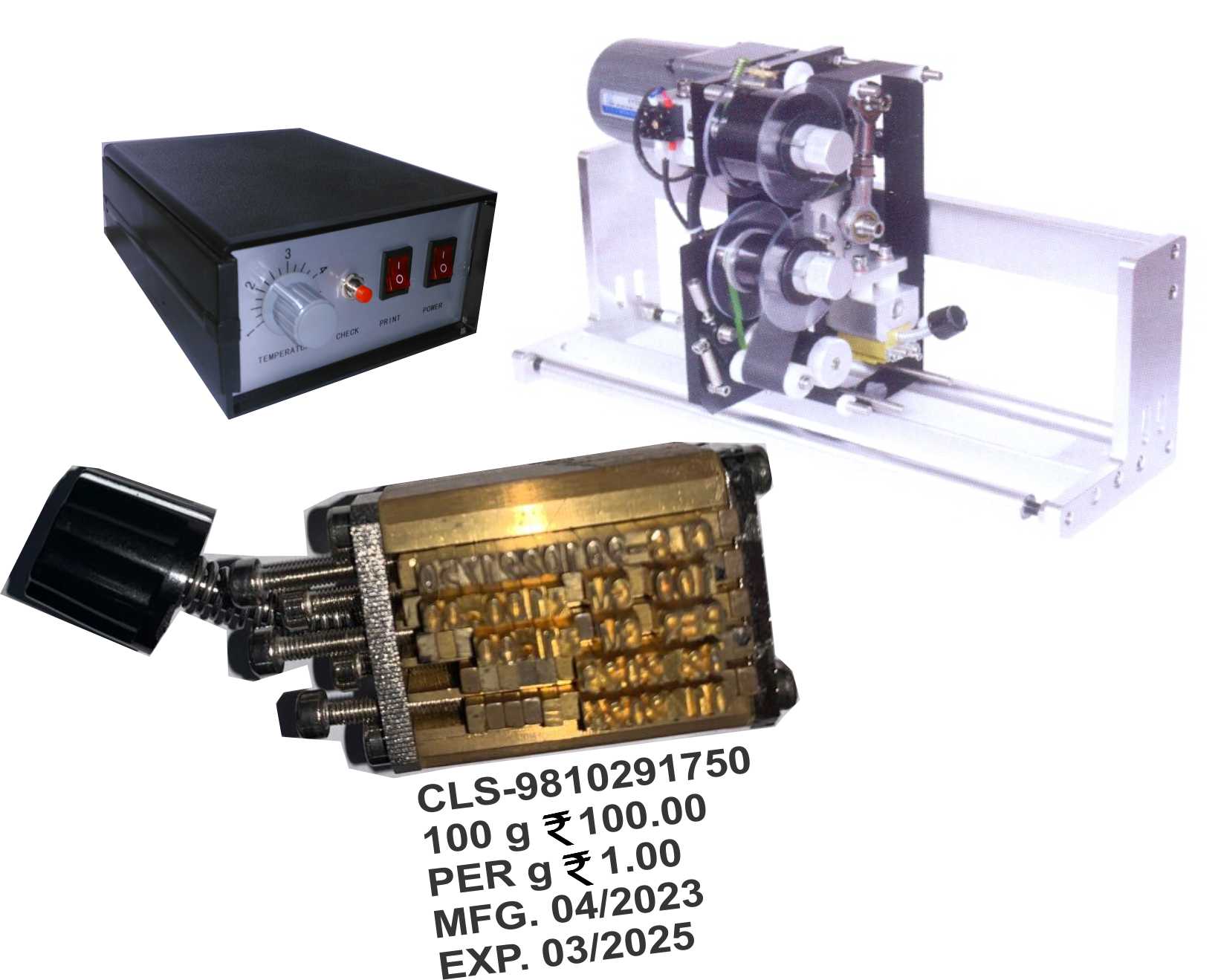

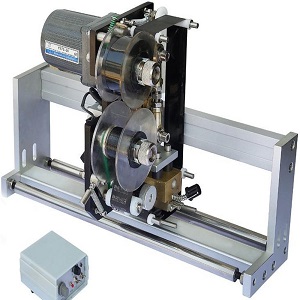

Ribbon Printing Machine HP-241

Compact Hot Foil coder for Semi-automatic / Manual Table – Top registered printing of B.No., Mfg.Dt., Exp.Dt., M.R.P. Rs., Logos, etc. on labels, pouches, cartons, boxes, etc. or for Online registered printing on any intermittent FFS (Form Fill Seal), Oil / Milk Pouch Packing machine, etc.

4 Lines or 5 Lines Printing  Machine.
These coders are ideal for Semi-Automatic Coding. As soon as the product is put on the platform, coding is done automatically.

The 5 line message to be printed is easily composed by pushing the Brass Stereos into the grooves & tightening them. The inking is in the form of Foil ribbon, which passes below the stereos & is advanced automatically after each print. The brass stereos are heated to a temperature of around 150 deg. C & hit the film onto the substrate thus transferring the print with embossing.
These are portable, compact and easy to install units. Simply plug the system into any electrical outlet of 230 VAC at your site to start printing.

The HP-241 is a hot foil stamping batch coding machine designed to print batch numbers, manufacturing dates, expiry dates, lot numbers, prices, and other variable data on flexible packaging materials.

It is widely used in industries like:
✅ Food & Beverage
✅ Pharmaceuticals & Cosmetics
✅ Consumer Goods
✅ Packaging & Labels

🔷 How does HP-241 work?

✅ The machine has a heated metal type holder where individual letters and numbers are placed.
✅ A hot stamping foil ribbon passes between the heated type and the packaging material.
✅ When the handle is pressed (or the mechanism is activated), the heated type presses the foil onto the surface, and the ink layer transfers in the shape of the characters.
✅ This creates a clean, dry, and durable print.

📋 Features of HP-241

✨ Simple to operate — ideal for manual or low-volume applications.
✨ Uses hot stamping foil, available in many colors.
✨ Adjustable temperature to suit different materials and foil types.
✨ Clean process — no inks, solvents, or drying time.
✨ Prints sharp, durable codes on a variety of flexible materials.

🛠️ Where is HP-241 used?

It is perfect for printing on:

• Plastic films (e.g., PP, PE, PET)
• Laminates & foils
• Labels & stickers
• Paper & coated cartons
• Pouches & bags

Commonly used for coding on flexible packaging like snack wrappers, medicine sachets, and labels.

🌟 Advantages

✅ Low cost and reliable.
✅ Easy to maintain.
✅ Good for short runs and small businesses.

🔷 In short:

The HP-241 is a simple, affordable, and clean hot foil batch coding machine — ideal for low-to-medium production needs and perfect for flexible packaging materials
