- USB + LAN + RS232 Connectivity: Multiple connection options for versatile use.
- Print Speed up to 101mm/s: Fast and efficient printing performance.
- Ribbon Roll Capacity 300m, 25.4mm: Large ribbon capacity for extended printing.
- Ribbon Roller (Outer Roll Ribbon): Designed for convenient ribbon handling.
- Supports TSPL, EPL, ZPL, DPL Commands: Compatible with various command protocols.
- Optional Bluetooth & Wi-Fi: Additional connectivity options for greater flexibility
Product Overview

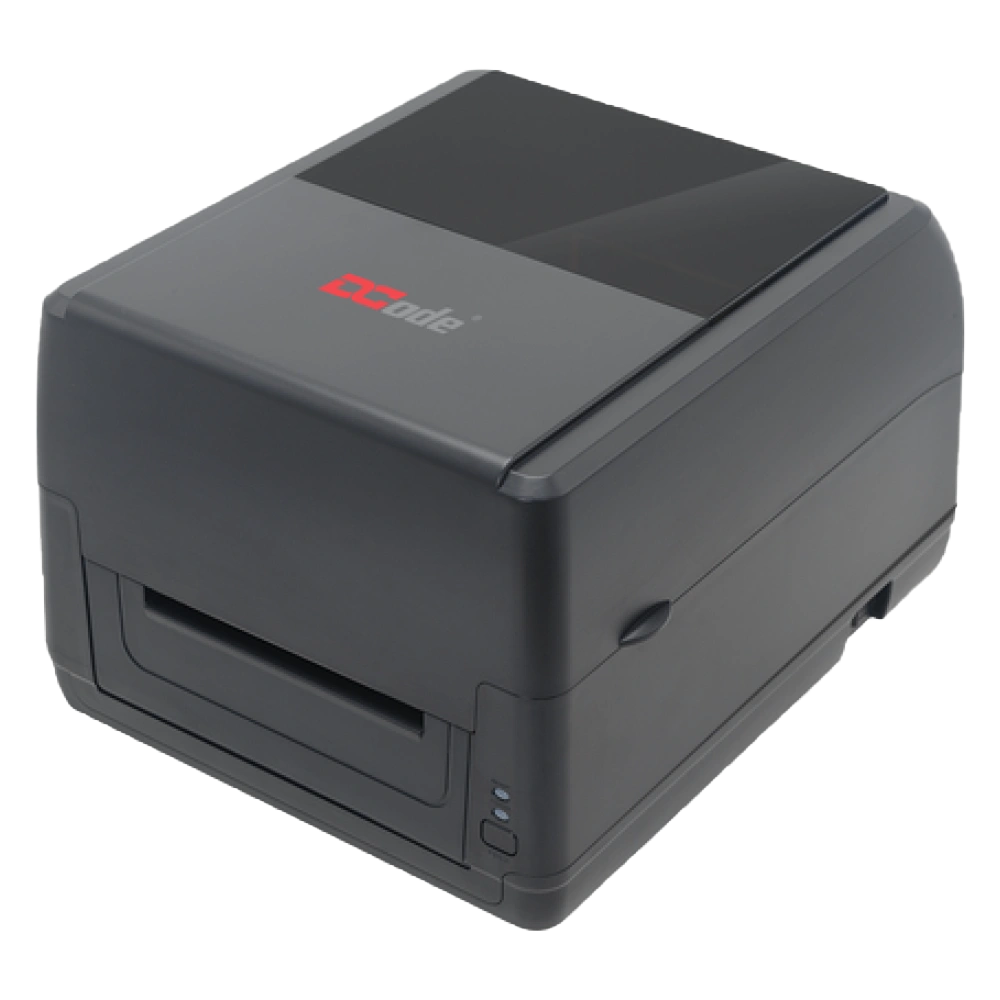

The DC433 Pro Thermal Transfer Label Printer is designed for high-quality, efficient printing in industrial and commercial environments. With a fast print speed of up to 101mm/s and a print resolution of 300 DPI, this printer delivers crisp, clear labels at high speeds. It supports multiple connectivity options, including USB, LAN, and RS232, with optional Bluetooth and Wi-Fi capabilities. Suitable for various media types and sizes, it’s perfect for businesses that require reliable, long-lasting printing solutions.
Efficient Features
• High-Speed Printing: Achieves a print speed of up to 101mm/s (4” per second), ideal for fast-paced environments.
• Sharp Print Resolution: Provides a high resolution of 300 DPI, ensuring detailed, clear text and barcodes.
• Flexible Media Handling: Accommodates media widths from 25.4mm to 118mm and media thicknesses from 0.06mm to 0.254mm.
• Ribbon Capacity: The printer supports a 300m ribbon roll with a 25.4mm core diameter, offering extended print runs.
• Emulation Support: Supports TSPL, EPL, ZPL, and DPL commands, allowing for compatibility with various software systems.
Performance
• Print Width & Length: The maximum print width is 104mm (4.09”) with a maximum print length of 889mm (35”), offering versatility in label sizes.
• Memory: Equipped with 8MB Flash Memory and 8MB SDRAM, expandable to a maximum of 4GB, ensuring the storage of large files and complex print jobs.
• Barcode Support: Supports both 1D and 2D barcodes, including Code 39, Code 93, Code 128, PDF-417, Data Matrix, QR Code, Aztec, and more, for enhanced barcode versatility.
• Media Types: Compatible with continuous, gap, black mark, fan-fold, and punched hole labels, ideal for various labeling needs.
ompatibility
The device is compatible with Windows, Linux, and Mac operating systems, ensuring seamless integration into existing setups across a variety of platforms. It offers SDK support for Windows, iOS, and Android, enabling easy customization and integration for diverse applications. Additionally, the device comes with standard interfaces including USB, LAN, and RS232, with optional Bluetooth and Wi-Fi for enhanced connectivity and flexibility in different environments.
Reliability
The DC433 Pro features a durable, compact design with dimensions of 299mm x 235mm x 198.3mm and weighs 2.55kg, offering both reliability and space efficiency. It is equipped with advanced sensors, including gap, cover, black mark, and ribbon sensors, ensuring precise media handling and print accuracy. Additionally, the print head is rated for up to 25KM of use, minimizing the need for frequent replacements and ensuring long-term performance.Environmental Tolerance: Operates in temperatures from 5°C to 40°C (41°F to 104°F) and humidity levels between 25% and 85% non-condensing, making it suitable for a wide range of environments.
