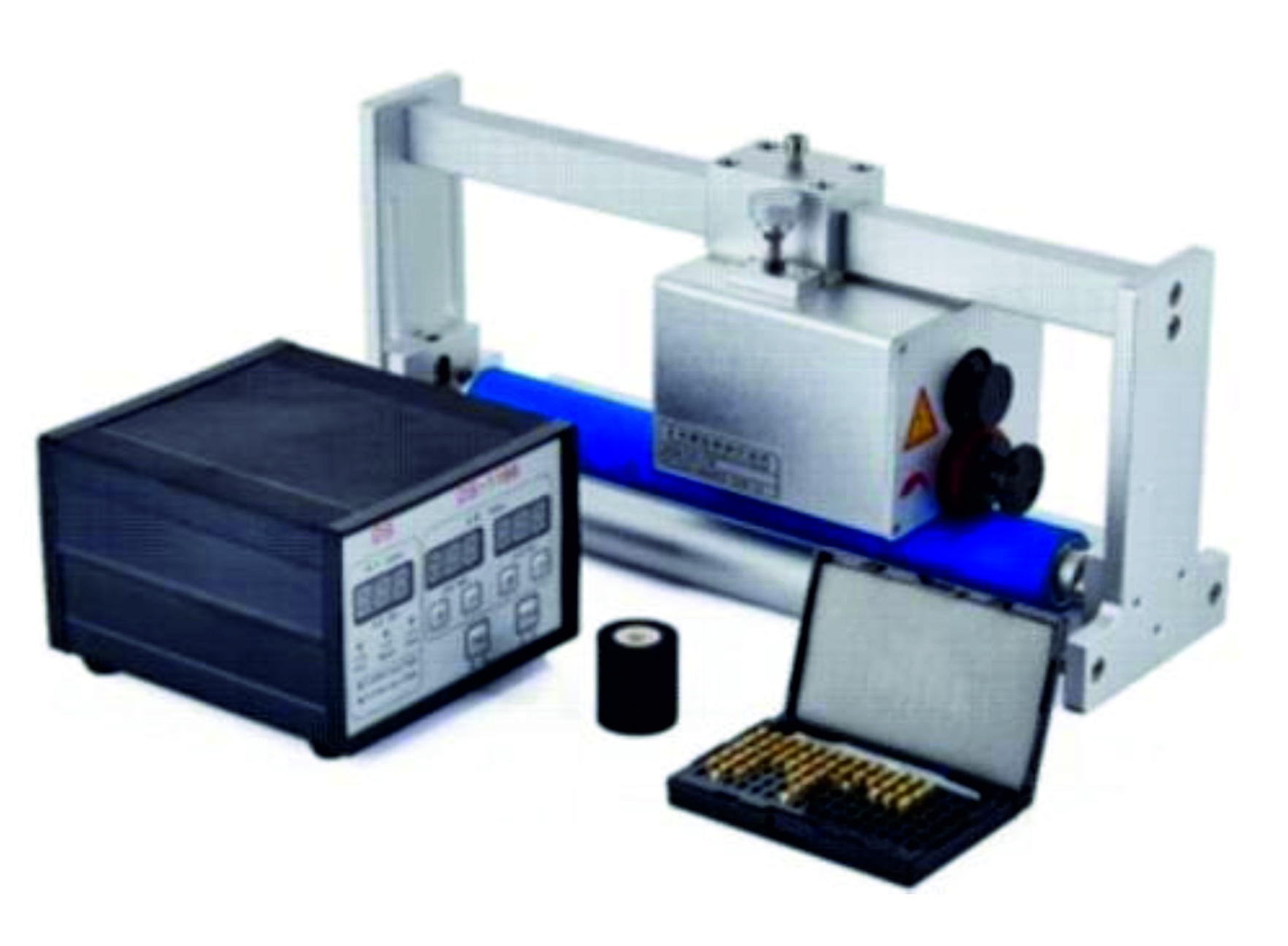

Batch Coding Machine DS-1188

Hot Roll Coding Machine for Flow Wrap / FFS  Pouch Machine for printing of B.No., Mfg.Dt., Exp.Dt. etc., for Online registered printing on any Intermittent or Continuous Pouch Packing Machine.

These coders are ideal for Semi-Automatic Coding. As soon as the product is put on the platform, coding is done automatically.

The 8-line message to be printed is easily composed by pushing the Brass Stereos into the grooves & tightening them. The inking is in the form of Hot Ink Roll, which passes below the stereos & is advanced automatically after each print. The brass stereos are heated to a temperature of around 150 deg. C & hit the film onto the substrate thus transferring the print with embossing.

These are portable, compact and easy to install units. Simply plug the system into any electrical outlet of 230 VAC at your site to start printing.

Specifications:

Supply Voltage	110 W 230 Vac
Printing Area	8 lines of 16 char.
Printing Speed	Max. 90 prints/min.
Prints using	Easily Changeable Copper / Brass stereos
Printing Medium	Replaceable Hot Ink Roll (Black, Red)

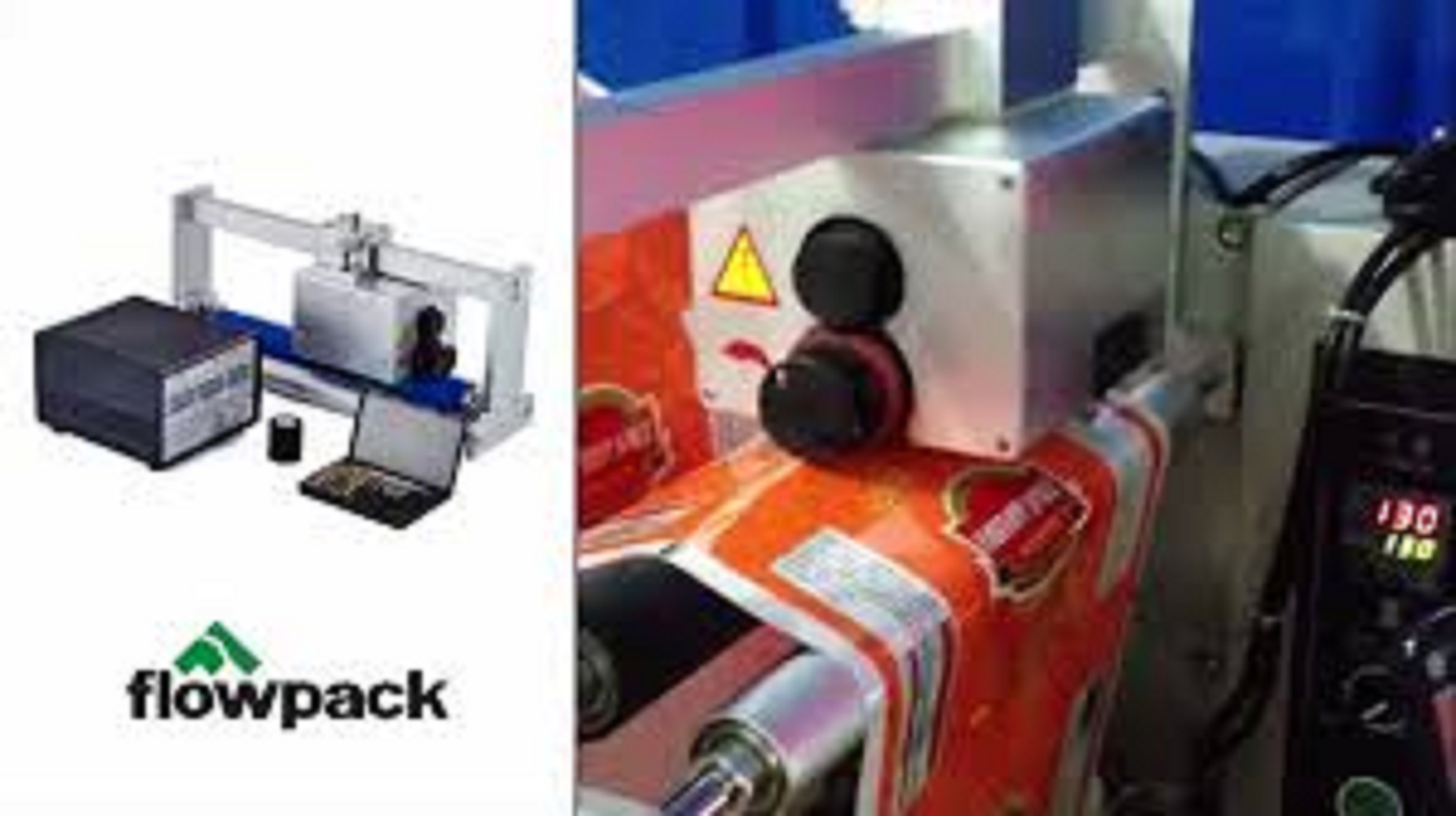

For the on-line system, the print head is mounted on the machine and coding is done whenever the parent machine Continuous sealing. It is electronically synchronized with the packaging machine to give registered coding at exact location.



📋 Key Features of Batch Coding Machine 1188

Compact & Simple:

• Lightweight, space-saving design for easy integration into production lines.
• User-friendly interface for easy operation and minimal training.

Reliable:

• Designed for long hours of operation in industrial environments.
• Can print on high-speed production lines with consistent quality.

Versatile:

• Prints on a wide variety of substrates, such as:
  • Plastic bottles & caps
  • Glass jars
  • Metal cans
  • Cartons and labels
  • Films and foils
• Works on flat, curved, or uneven surfaces.



• 🔷 Advantages

⭐ Compact and affordable  printer for batch coding.
⭐ High-speed printing — suitable for fast-moving lines.
⭐ Prints small and precise characters — ideal for expiry dates & lot codes.
⭐ Designed to minimize maintenance and downtime.



🛠️ Common Applications

• Food & Beverage — coding bottles, cans, pouches.
• Pharmaceuticals — marking blister packs, cartons.
• Cosmetics — batch codes on tubes, jars, boxes.
• Electronics & Automotive — parts and components.





IN SHORT DS-1188:

The Batch Coding Machine 1188 is a compact, reliable  printer ideal for batch, lot, and date coding on a wide range of packaging materials — perfect for small-to-medium production lines needing simple, consistent coding at high speed.
